The MUSS-0500XF is a uniform, adjustable spherical light source specially designed for large-field-of-view cameras. Like ordinary camera calibration light sources, it provides highly uniform luminance output at the opening. With a special design, the camera under test is mounted on a dedicated fixture and shoots toward the inside of the sphere through the output port. Three motorized adjustable irises are installed at the front of the source, allowing the three channels to be adjusted synchronously by software without changing the color temperature. A halogen lamp is used by default; other light sources can be selected to meet different testing requirements.
Specification
| Item | Parameter | Qty |
|---|---|---|
| Integrating Sphere | Inner diameter: Φ500mm | 1 pc |
| Sphere Output Port | Diameter: Φ60mm (customizable) | 1 pc |
| Light Source | Halogen lamp, 3000K (customizable) | 3 sets |
| Light Source Power Supply | DC power supply | 3 channels |
| Adjustable Iris | Motorized iris | 3 pcs |
| Camera Transmission Mechanism | Customizable per camera under test | 1 set |
| Cabinet | Houses controller & power supply (optional) | 1 set |
| Uniform Light Source Controller | MUSC-3000, with illuminance monitoring and probe | 3 pcs |
| Port Uniformity | ≥99% @ 50mm | / |
| Port Brightness Level | 0 ~ 1800 Lux (continuously adjustable) | / |
| Field of View | ≥180° | / |
Product Features
- Real-time monitoring of output-port illuminance / luminance.
- Intelligent illuminance control: enter a target luminance value and the software adjusts automatically.
- Smart lamp ignition: one-click synchronous lighting of lamps at the same power, or manually light each lamp by clicking its position on the main interface.
- Synchronized motorized iris adjustment: the three irises can be locked and adjusted together with a single slider.

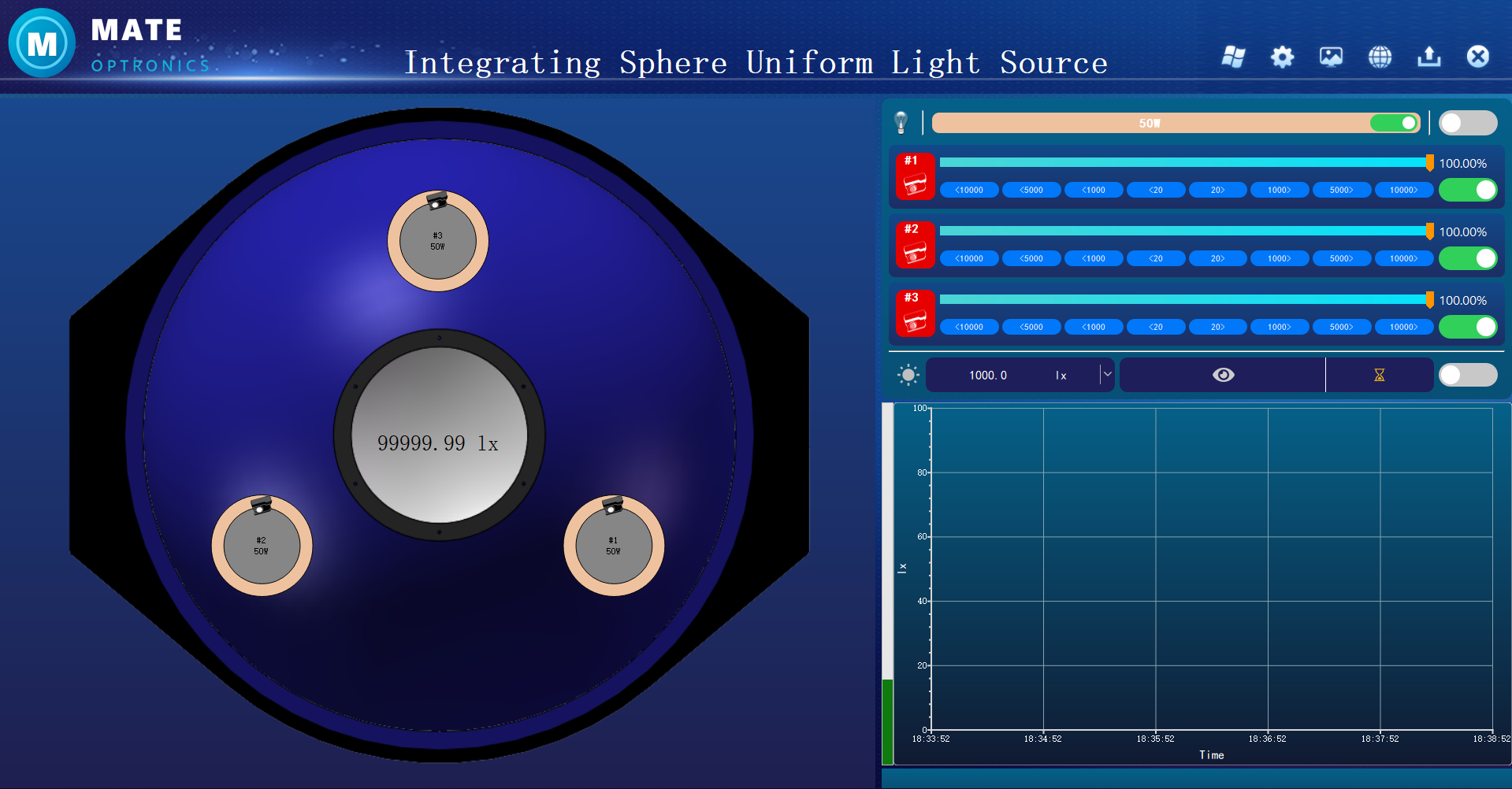

Software Interface
Application Area
- Large-field-of-view camera calibration
- Camera and image-sensor testing
- Uniform light source / luminance calibration
- Laboratory and production quality inspection
